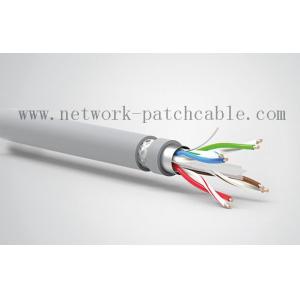

Energy Saving Ethernet Cat6 SFTP Cable PVC / LSZH Low Insertion

Ask Lasest Price
Brand Name :	WONTERM
Model Number :	WT6803-SF
Certification :	CE/FCC/UL/ROHS
Price :	negotiation
Payment Terms :	T/T or western Union
Supply Ability :	2500pcs per month
Delivery Time :	10 working days after received your payment

Add to Cart

Product Details
Company Profile

Energy Saving Ethernet Cat6 SFTP Cable PVC / LSZH Low Insertion

Energy Saving Ethernet Cat6 SFTP Cable PVC / LSZH Low Insertion

Specifications:

SFTP CAT6	Conductor	Insulation	Jacket
Material	CU/CCA/CCS/CCA+CCS/CCAM	PE/HDPE	PVC/LSZH
Color	According to the conductor	Orange/orange white/green/green white/blue/blue white/brown/brown white	Gray/white/blue or per customers’ request
OD Diameter	23AWG/24AWG 0.5mm-0.58mm+/-0.01mm	0.95~0.98mm+/-0.01mm	6.0+/-0.2mm

Description:

Impendance:	100ohm±15%
Max. Resistance Unbalance:	3%(5% for TIA/EIA)
Min. Propagation Velocity:	0.65C
Max. Mutual Capacitance:	5.6nF/100m
Max. Capacitance Unbalance:	3400/3300 pF/Km (ISO/IEC, TIA/EIA)
Max. D.C Resistance	9.38ohm/100m(24AWG)
Max. D.C Loop Resistance:	19.2ohm/100m
Min. D.C Insulation Resistance:	150Mohm/100Km
Max. Propagation Delay Skew:	30 ns/100m

Why choose SHENZHEN TAIYUE COMMUNICATION CABLE CO.,LTD?

About us

SHENZHEN TAIYUE COMMUNICATION CABLE CO.,LTD.specializes in network cable .Lan cable and other related products. We integrate research and development, production, sale, service and technology. Since our establishment in 2000, our company has always focused on the "cabler" research and development, management and research. We are aiming at a multi-win situation with our partners, staff members, shareholders and suppliers.

FAQ

1) What is your Payment term?
---TT, LC, Western Union could be accepted.

2) What is your Trade term?
---EXW, FOB is also ok.

3) What is the Loading Port?
--- GUANGZHOU

4) What is your MOQ?
---30 roll Or that you like!

5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
